Humminbird Network Diagram. Humminbird Networking Diagrams Humminbird After they are split into 4 teams, they must work together to. By visualizing the current network arrangement, users can easily identify available ports or slots for new devices, ensuring a seamless integration without any conflicts or compatibility issues.
Humminbird Wiring Diagram from wiringdiagramall.blogspot.com
When using the AS ETH 5PXG, the network is limited to a total of four Humminbird fish finders. THE ONE-BOAT NETWORK® FROM HUMMINBIRD® AND MINN KOTA®
Humminbird Wiring Diagram

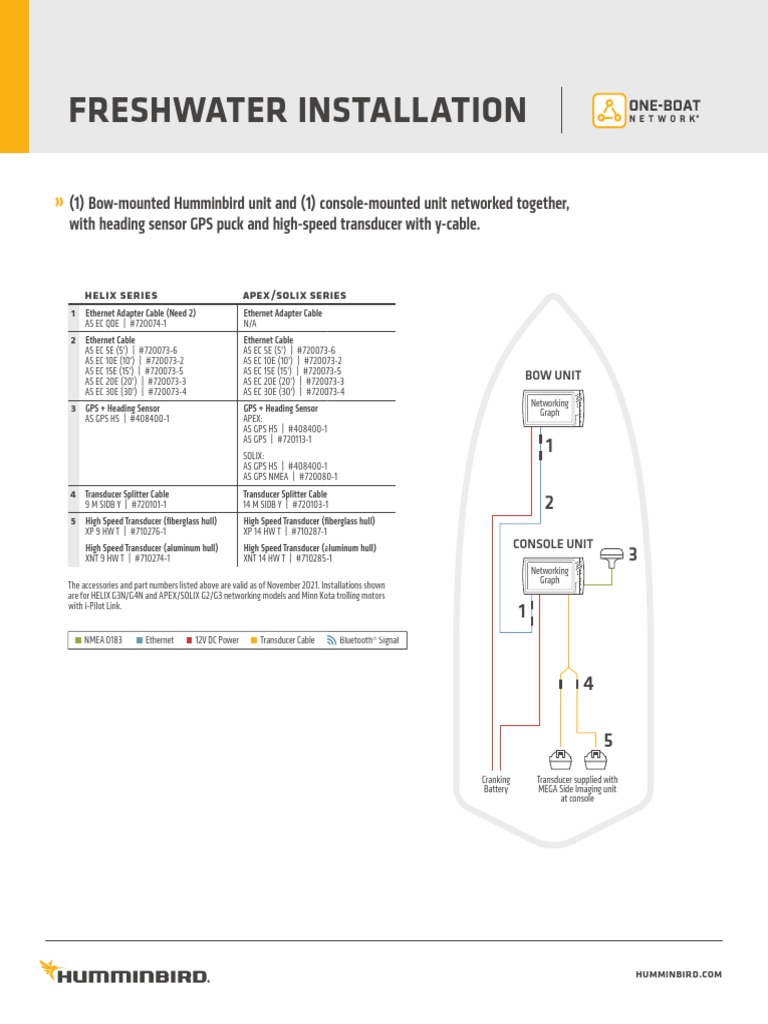

THE ONE-BOAT NETWORK® FROM HUMMINBIRD® AND MINN KOTA® HUMMINBIRD.COM FRESHWATER INSTALLATION 14 3 7 Cranking Battery MK Heading Sensor BOW UNIT 6 Trolling Motor Batteries 5 Networking Graph Networking Graph » Adding a MEGA Live Imaging transducer to a boat with (2) bow-mounted Humminbird units and a Minn Kota motor with built-in MEGA Imaging Scalability: Humminbird networking diagrams allow users to plan and implement network expansions or additional device integrations
Humminbird Wiring Diagram. Not all Legacy products are compatible, please see compatibility notes here HUMMINBIRD.COM FRESHWATER INSTALLATION 11 4 5 8 7 Cranking Battery MK Heading Sensor MEGA 360 Imaging Ultrex 1 BOW UNIT CONSOLE UNIT 6 3 Transducer supplied with MEGA Side Imaging unit at console Trolling Motor Batteries 1 1 9 10 2 Networking Graph Networking Graph Networking Graph helix series apex/solix series
Interfacing to Humminbird 700, 800, 900 and 1100 Series Sonar Server. helix series apex/solix series 1 Ethernet Adapter. THE ONE-BOAT NETWORK® FROM HUMMINBIRD® AND MINN KOTA®
